Description

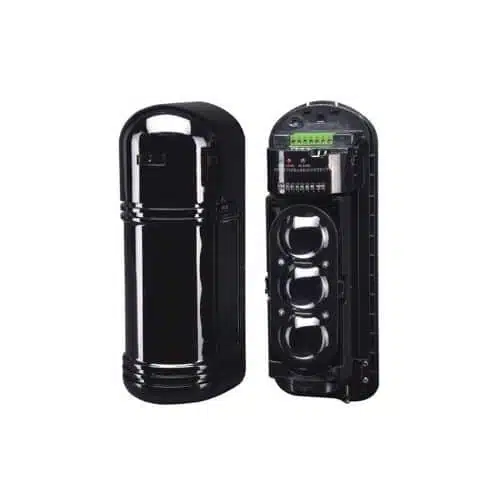

Infilink ABE-250 3 Beam Active Photoelectric Detector Specs:
- Anti-glare up to 50,000 LUX, built-in automatic adjustment strong light filtering system, avoid glare or lighting of the car
- Unique optical design: optical glass, beam penetrates the special multi-layer anti-environment (such as rain and snow) and other capabilities
- Automatically increase sensitivity when faced with fog or inclement weather
- Optional Three aspheric Fresnel or secondary focusing lens to achieve a large-diameter light beam
- Automatic environment recognition circuit (EDC), avoid reflective interference modularly
- Horizontal/vertical optical angle easy to adjust, easy to calibrate
- High levels of resistance to RFI / EMI capability
- Unique digital filter circuit design
- 99% photographic margin
- Built-in optical sight
- Anti-lightning circuit design
- Use of C-type output device
- Adjustable beam interdiction cycle is more flexible and adaptable
- The integrated structure designed to be able to work in a harsh environment
| No.of Beams |
3 beams |
| Detection Mode |
3 beams blocked simultaneously |
| Optical Source |
Infrared digital pulse beam |
| Outdoor Distance |
250m, Indoor Distance: 750m |
| Response Speed |
50 ~ 70msec |
| Relay contact output |
NO.NC |
| Contact Rating output |
AC/DC30V 0.5AMax |
| Power Supply |
DC13.8 ~ 24V / AC 11-18V (Not included) |
| Level Adjustment Axis |
180 90 |
| Vertical Adjustment Axis |
20 10 |
| Operation temperature |
-25 C – 55 C |
| Operation humidity |
5% – 95% RH (relative humidity) |
| Material |
ABS colophony |
