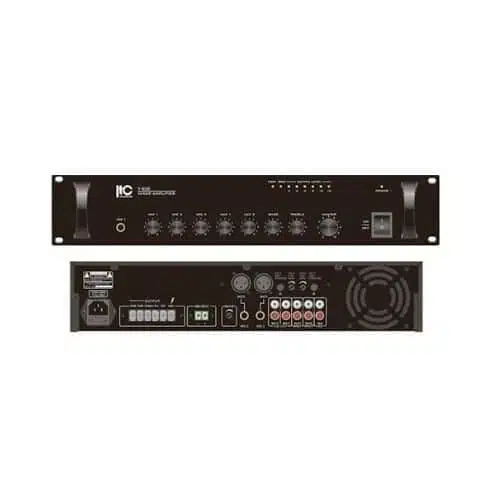

ITC T-650 Mixer Power Amplifier



Product Code: OTC2427

The basic public address mixer-amplifier. It is featured with 3 microphone inputs, 2 aux inputs, and 1 EMC input. Priority muting is achieved via EMC for overriding other inputs except for Mic1 on the front panel.

Individual gain controls are provided for Mic 1-3 and Aux 1-2, bass and treble controls, and master volume control are provided for overall tone control. 70V, 100V, and low impedance 4-16 ohms speaker outputs are provided. Extensive protection from short-circuit, overload, and high temp.

ITC T-650 Mixer Power Amplifier Specs:

* Mixer amplifier for paging and background music system
* Rated power 650W
* 3U rack mount
* 70V, 100V, and low impedance 4-16ohm speaker output
* Three Mic inputs by phone jack type
* Mic 1 with VOX priority and VOX level on the front panel
* Mic 2-3 by phone jack on the rear panel
* Two Aux Inputs and 2 line inputs for spare use
* One EMC priority input
* EMC has priority over all inputs except MIC1
* Mic 1-3, Aux 1-2 and master volume controls and bass/treble tone control
* Short circuit, overload, and high temp protection

Technical data

Power Supply 220-240V
Rated Power Output 650W
Outputs 4Ω, 70V, 100V, and COM
Frequency Response 50Hz – 16kHz
THD less than 1%
S/N MIC:66dB; AUX:80dB
Dimensions 19”/3U
Weight 27kg

# Check PA Amplifiers

# Check Latest Microphone Models
