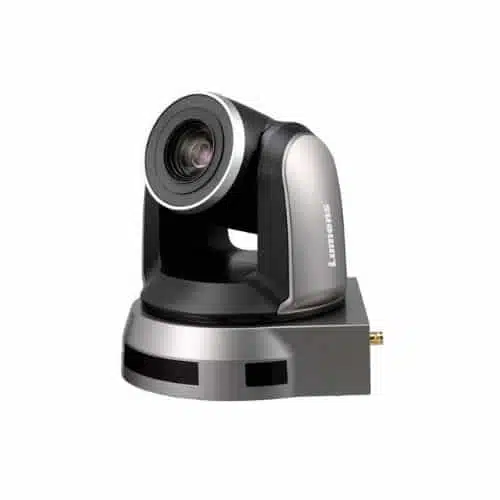

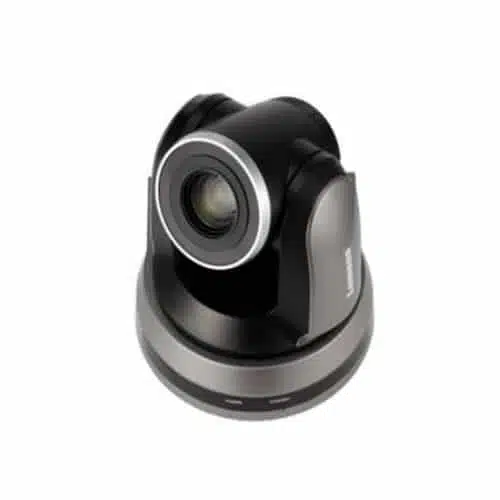

Lumens VC-A50P IP PTZ Camera Specs:
Sensor
1/2.8″ 2MP CMOS
Video Output
1080p 60 / 59.94 / 50 / 30 / 29.97 / 25 fps,
1080i 60 / 59.94 / 50 fps,
720p 60 / 59.94 / 50 fps
Optical Zoom
20x
Panning Angle
-170° ~ +170°
Tilting Angle
-30° ~ +90°
Preset Positions
128
Video Output (HD) Interface
3G-SDI, HDMI, Ethernet
Video Stream
RTSP / RTMP
PoE
PoE+ (IEEE802.3at)
Camera Control Interface
RS-232 / RS-422 / Ethernet
Camera Control Protocol
VISCA / PELCO D / ONVIF
Video S/N Ratio
> 50dB
Shutter Speed
1/1 ~ 1/10,000 sec
Focal Length
f = 4.7 ~ 94 mm
Video Compression
MJPEG, H.264 / SVC
3D NR
Yes
Horizontal Viewing Angle
63°
Aperture
F1.6 ~ F3.5
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Di ance
1.2m
Gain Control
Auto, manual
White Balance
Auto, indoor, outdoor, one-push, manual
Exposure Control
Auto, manual
Focus System
Auto, manual
Image Flip
Yes
Audio Input
Line In / MIC In
Audio Output
Ethernet, SDI, nd HDMI
Power consumption
Power On: 16W
Standby: 12W
Standby: 12W
Weight
2 kg (4.4 lbs)
Package Contents
- Instruction for installation
- Remote Control
- Power Cord
- Power Adapter
- RS-422 Connector
- Metal Plate A / B
- M3 Screws
Dimensions (W x D x H)
174 x 186 x 187mm (6.9” x 7.3” x 7.3”)
Package Contents
- Instruction for installation
- Remote Control
- Power Cord
- Power Adapter
- RS-422 Connector
- Metal Plate A
- Metal Plate B
- M3 Screws
