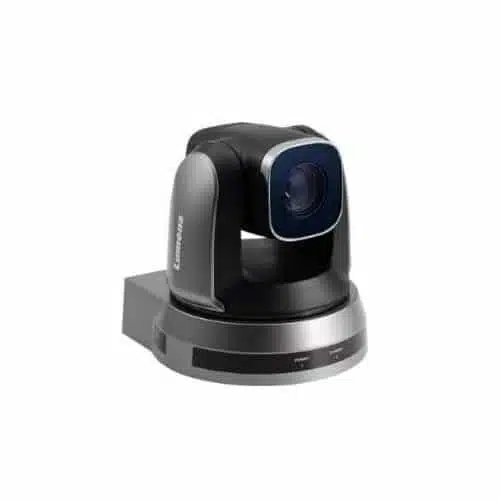

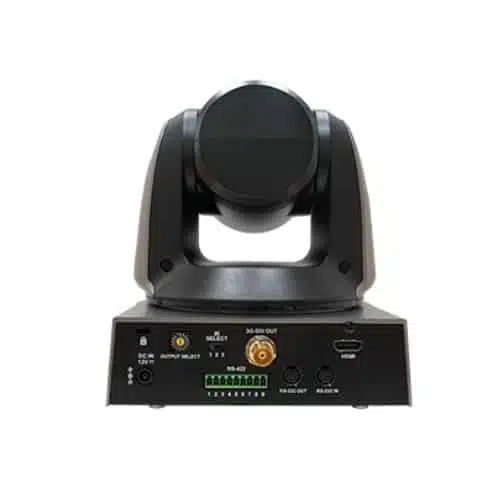

LUMENS VC-A52S PTZ Video Camera



  • Dual-color option for different kinds of environments
  • With professional noise reduction technology, a clear image is delivered
  • Supports Wide Dynamic Range (WDR) to provide a vivid image even under backlighting
  • Full HD 1080p with 60 fps
  • Supports manual white balance function for a complex lighting environment
  • 240 times variable zoom ratio (20x optical zoom with 12x digital zoom)
  • 3G-SDI, HDMI synchronous image output
  • Maximum horizontal/vertical speed of rotation: 300° / sec
  • Wide Pan/Tilt/Zoom mechanism: Horizontal viewing angle: -170° to +170° Tilting angle up to 90°, and down to -30°
  • Compatible with major videoconferencing and lecture capture codec

LUMENS VC-A52S PTZ Video Camera Specs:

The Lumens™ VC-A52S HD Pan/Tilt/Zoom (PTZ) camera is equipped with a professional 1/2.8 inch image sensor with Full HD 1080p output resolution and high dynamic image quality of 60 fps. The superior 20x optical zoom lens with professional noise reduction and wide dynamic range technology delivers a clear image even in low light, backlight, or the extreme contrast of brightness and darkness in a room.

The camera utilizes a highly efficient motor controller to achieve high-speed, quiet, and precise positioning movements. The VC-A52S supports 3G-SDI, HDMI interfaces allowing two simultaneous image outputs with the best possible image quality and are compatible with all video equipment. The VC-A52S is applicable for lecture capture, videoconferencing, and broadcasting systems.

Lumens introduced its VC-A52S PTZ video camera, including a ½ eight-in image sensor with Full HD 1080p output resolution, a 20x optical zoom lens, and the ability for the camera to adjust the lighting level in a room from high levels brightness to darkness. The VC-A52S includes HDMI and 3G-SDI interfaces, with the 3G-SDI interface enabling a 1080p video signal to run over distances with a wide shooting area and quiet positioning movement.


1/2.8” 2 MP CMOS
Video Output
1080p 60 / 59.94 / 50 fps,
1080i 60 / 59.94 / 50 fps,
1080p 30 / 29.97 / 25 fps,
720p 60 / 59.94 / 50 fps,
720p 30 /29.97 / 25 fps
Optical Zoom
Panning Angle
-170° ~ +170°
Tilting Angle
-30° ~ +90°
Preset Positions
Video Output Interface
Camera Control Interface
RS-232 / RS-422
Video S/N Ratio
> 50dB
Shutter Speed
1/1 ~ 1/10,000 sec
Focal Length
f = 4.7 ~ 94 mm
Horizontal Viewing Angle
F1.6 ~ 3.5
Minimum Illumination
1.0 lux (F1.6, 50IRE, 30fps)
Minimum Object Distance
1000(Wide) ~ 1500(Tele) mm
Digital Zoom
Gain Control
Auto, manual
White Balance
Auto, indoor, outdoor, one-push, manual R/B Gain
Exposure Control
Auto, manual
Focus System
Auto, manual
Image Flip
4.4 lbs(2 kg)
Dimensions (W x D x H)
6.9”x 7.3”x 7.3”(174 x 186 x 187 mm)
Package Contents
Instruction for installation
Remote Control
Power Cord
Power Adapter
RS-422 Connector
Metal Plate A
Metal Plate B
M3 Screws
