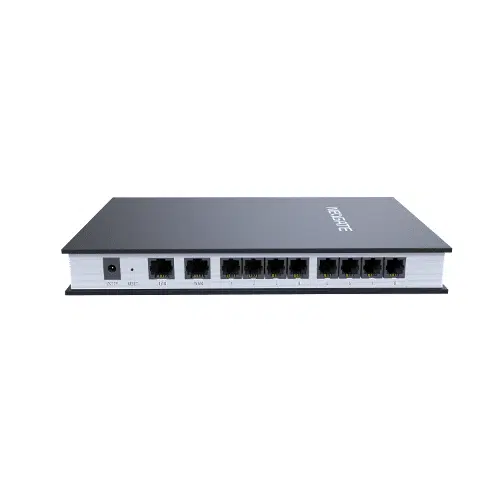

Yeastar VoIP PBX Module NEOGATE TA 800



  • The YeastarNeoGate TA800 gateway or set it up at your desk.
  • It features a compact design and a quiet operation.
  • A firewall, attack alert services, DDNS, VLAN, and Nat traversal, are built into the gateway to protect your data and communications.
  • Call quality is improved through echo cancellation and dynamic jitter buffer.
  • FXS Gateway TA800 Yeastar TA800 features 8 FXS ports for analog phones and is designed to meet various demands of IP applications.
  • The powerful features and robust performance simplify the integration of legacy phone systems and IP-based systems.
  • High-Performance TA800 is a stand-alone FXS VoIP gateway with carrier-grade features and reliability.
  • 8 FXS ports, Fully compliant with SIP and IAX2, Flexible calling rules, Superb voice compression with industry-standard codecs, Line echo cancellation for 8, 16, 32, 64, or 128 ms echo delays, Tested and certified with Elastix, BroadSoft, and others.

Yeastar VoIP PBX Module NEOGATE TA 800 Specs:

8 FXS ports
Fully compliant with SIP and IAX2
Flexible calling rules
Reliable fax performance with T.38
Provides high-quality voice compression with industry-standard codecs
Line echo cancellation for 32, 64, or 128 ms echo delays
Web-based GUI for easy configuration and management
Excellent interoperability with a wide range of legacy and IP equipment

Model: Neogate TA800

Number of Telephony Ports: 8
Phone Interface: 8 x RJ11 FXS ports

Protocol: SIP (RFC3261), IAX2
Transport Protocol: UDP, TCP, TLS, SRTP
DTMF: RFC2833, SIP INFO, In-band
Codec: G.711 a/u-law, G.722, G.726, G.729a, GSM, ADPCM, Speex
Echo Cancellation: ITU-T G.168 LEC
FAX over IP: T.38 and pass-through
Signaling: Kewl Start, Loop Start
Caller ID: BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Method: Busy Tone, Polarity Reversal
LAN: 1 (10/100Mbps)
Network: Static IP, DHCP Client, Firewall, VLAN, DDNS, QoS, OpenVPN
NAT Traversal: Static NAT, STUN
Size: 200 (L) mm x 137 (W) mm x 25.6 (H) mm
Power Supply:12V 1.5A
Operation Range: 0° to 40°C, 32° to 104° F
Storage Range: -20° to 65°C, -4° to 149° F
Humidity: 10-90% non-condensing
3-way Conference
Attended Transfer
Black List
Blind Transfer
Call Detail Record (CDR)
Caller ID Display or Block
Call Forward: No Answer, Busy, All
Call Waiting
Call Status Display
Do Not Disturb
IP Blacklist
Network Attack Alert
RADIUS Accounting & Login
Real Open API Protocol (Based on Asterisk)
Voice Prompt
SIP Server and SIP Trunk supported
SIP Peer Mode supported
System Logs
Web-based configuration
