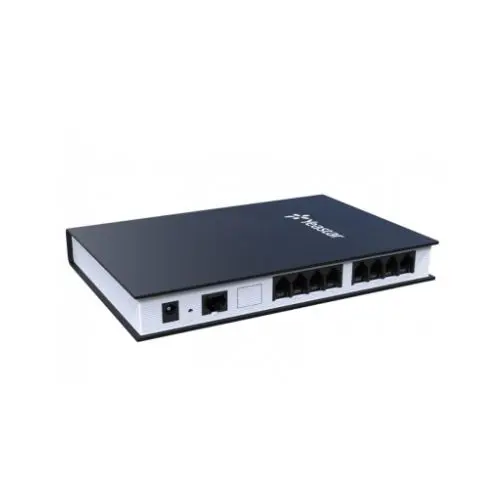

Yeastar TA 810 NEOGATE VoIP PBX Module

Product Code: OTC2630

  • NeoGate TA810 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.
  • 8 FXO ports
  • Fully compliant with SIP and IAX2
  • Flexible calling rules
  • Superb voice compression with industry-standard codecs
  • Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
  • Tested and certified with Elastix, BroadSoft and others
  • Featuring a book-like design, NeoGate TA810 is elegant in appearance and flexible in installation. It is a  desktop device and also wall mountable. Place it on the table, it not only provides convenient connection of  analog phones but also decorates your office pleasantly. Mount it on the wall, it saves you space and gives you more flexibility.
  • NeoGate TA810 has an easy-to-use Web interface allows super easy and straightforward configuration.
  • LED indicators present system and port status visually
  • User-friendly Web GUI and intuitive operations
  • Comprehensive call log, system logs, hardware logs, and debug logs
  • With a fanless design and a compact and small form factor, NeoGate TA810 is very quiet when operating.
  • Low power consumption makes NeoGate TA810 a very green and cost-effective product, perfectly suitable for any type of environment.

৳ 28,000



Yeastar TA 810 NEOGATE VoIP PBX Module Specs:

Ports 8 FXO Ports
Telephony Interfaces RJ11
Network Interfaces 1 10/100BASE-T Ethernet
Protocol SIP (RFC3261), IAX2
Transport UDP, TCP, TLS, SRTP
Voice Codec G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM
Voice Capability ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer
DTMF Mode RFC2833, SIP Info, In-band
Fax over IP T.30
QoS DiffServ, ToS, 802.1 P/Q VLAN tagging
Network DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN
Network Protocol FTP, TFTP, HTTP, HTTPS, SSH
Protocol TR-069*
Signaling FXO Loop Start, FXO Kewl Start
Caller ID BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID
Disconnect Methods Busy Tone, Polarity Reversal
FXO Connectivity Programmable AC Impedance, Hangup Detection, Answer Detection, Caller ID detection
Power 12V, 1A
Dimensions (L × W × H) (mm) 200 × 137 × 25
Humidity 10-90% non-condensing
Storage Range -20°C to 65°C, -4°F to 149°F
Operation Range 0°C to 40°C, 32°F to 104°F
Mounting Desktop, Wall-mount
Compatibility Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft
