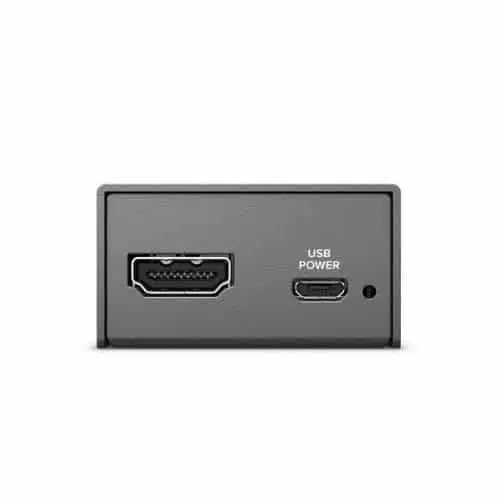

Blackmagic Design Micro Converter SDI to HDMI
SKU:9,500৳
- SD/HD/3G-SDI Input
- HDMI and SDI Loop Outputs
- Supports SD and HD Signals
- Automatic Input Signal Detection
Blackmagic Design Micro Converter SDI to HDMI Specs:
| I/O | 1 x SD/HD/3G-SDI BNC input 1 x SD/HD/3G-SDI BNC loop output 1 x HDMI type A output 1 x USB Micro-B |
| Format Support | 1080p24/25/29.97/30/50/59.94 1080PsF25/29.97/30 1080i50/59.94/60 720p50/59.94/60 NTSC PAL |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M |
| Color Precision | 4:2:2 |
| Color Space | YUV and RGB |
| OS Support | Mac OS X 10.10, 10.11 or later Windows 8.1, 10 |
| Power | Power input: 5 VDC via USB Micro-B Power consumption: 1.6 W Operational voltage range: 4.4 to 5.25 VDC |
| Environmental | Operating temperature: 32 to 104°F / 0 to 40°C Storage temperature: -4 to 140°F / -20 to 60°C Relative humidity: 0 to 90% non-condensing |
| Dimensions | 3 x 1.8 x 1″ / 76 x 46 x 25 mm |
| Weight | 5.3 oz / 150 g |
Connect your professional video equipment to any HDMI monitor or consumer television with the Blackmagic Design SDI to HDMI Micro Converter. This minuscule Micro Converter accepts an SD, HD, or 3G-SDI signal and converts it to an HDMI signal while retaining the original image quality and resolution.
An SDI loop output sends out a re-clocked SDI signal for connecting to other down-stream equipment. The converter’s small size allows it to be placed nearly anywhere, and it can be powered via any standard USB power source, including separately available USB battery packs.
