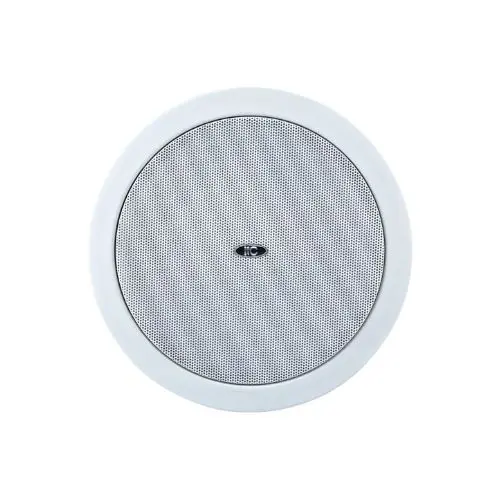

ITC T-104 Ceiling Speaker
SKU:1,850৳
- ITC T-104 built-in 100v/70v transformer
- In-ceiling type loudspeaker
- 4” speaker unit
- Power taps 1.5W, 3W & 6W @100V
- Metal enclosure and aluminum grille
- Paint in white color
- Metal back cover is optional
Call for Price
ITC T-104 Ceiling Speaker Specs:
The T-104 is a ceiling speaker built-in 70v/100v transformer. The 70v/100v transformer technique reduces line losses on a longer distance and allows easy parallel connection of multiple loudspeakers. The built-in 4 ” speaker driver is designed of wide frequency response 130-16KHz, the multiple power taps 1.5W, 3W & 6W are helpful for different applications varies from room size and ambient noise surroundings. The metal grille and aluminum grille are painted in attractive white color. Its spring clamp makes an easy and secure installation. It is an ideal choice for industrial and commercial applications in hotel, school, office, and factory where background music and paging is needed.
Specification
| Product Model | T-104 |
| Max. SPL (Rated W/1M) | 99dB |
| Frequency Response (-10dB) | 130-1 6 KHz |
| Finish | Baffle: Steel, White Grille: Aluminum, White |
| Mounting | Spring-clip |
| SPL(1W/1M) | 92dB |
| Impedance | Black: Com Red:6.7 K Ω Green:3.3K Ω White:1.7K Ω |
| Power Taps @70V | 0.75W, 1.5W, 3W |
| Power Taps @100V | 1.5W, 3W, 6W |
| Cutout Size | 155mm |
| Speaker Driver | 4 |
| Weight | 0.7Kg |
| Dimensions | 180 x 50mm |
