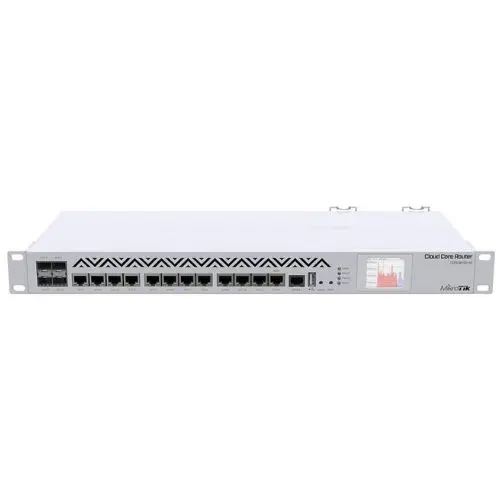

MIKROTIK CCR1036-12G-4S Cloud Core Router
SKU:87,500৳
Product Code: OTC2816
CCR1036-12G-4S is an industrial-grade router with a cutting-edge 36 core CPU. If your network requires to operate with millions of packets per second – Cloud Core Router with 36 cores is your best choice.
The device comes in a 1U rackmount case, has four SFP ports, twelve Gigabit Ethernet ports, a serial console cable, and a USB port. The new r2 version has onboard 4 GB of RAM, onboard M.2 slot, full-size USB slot, and dual PSU for redundancy.
Call for Price
MIKROTIK CCR1036-12G-4S Specification:
| Product code | CCR1036-12G-4S |
| Architecture | TILE |
| CPU | TLR4-03680 |
| CPU core count | 36 |
| CPU nominal frequency | 1.2 GHz |
| Dimensions | 443 x 193 x 44 mm |
| License level | 6 |
| Operating System | RouterOS |
| Size of RAM | 4 GB |
| Storage size | 1 GB |
| Storage type | NAND |
| Tested ambient temperature | -20°C to 60°C |
Powering
| Number of AC inputs | 2 |
| AC input range | 100-240 |
| Max power consumption | 60 W |
Ethernet
| 10/100/1000 Ethernet ports | 12 |
Fiber
| SFP DDMI | Yes |
| SFP ports | 4 |
Peripherals
| Serial port | RJ45 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
Other
| CPU temperature monitor | Yes |
| PCB temperature monitor | Yes |
| Mode button | Yes |
Certification & Approvals
| Certification | CE/RED, EAC, ROHS |
| Brand |
|---|
