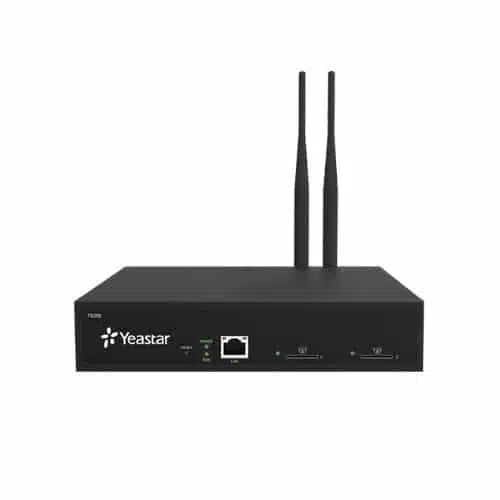

Yeastar TG200 NEOGATE 2-GSM Gateway
SKU:25,500৳
The Yeastar Neogate TG200 is a GSM gateway for connecting GSM networks to VoIP networks for two-way communication. The TG200 is ideal for connecting IP Phones, soft switches, and IP-PBX’s to the GSM network, and is the best fallback solution for landline outages.
The TG200 Gateway from Yeastar can be a cost-saving addition for a backup option should landlines go out, and is great for phone calls between mobiles or to PTSN. Best of all, it’s easy to install with a web-based GUI and simple to integrate.
Yeastar Neogate Series includes features such as SIP proxy Registrar for IP phones, incoming and outgoing call routing, SMS sending and receiving with a web interface, call back function, Least Cost Routing (LCR), top voice quality (EFR super sound), simple web-based configuration, and it’s easy to integrate and easy to install.
Yeastar TG200 NEOGATE 2-GSM Gateway Specs:
| Specifications | |||
| Mobile | 2 GSM or WCDMA Channels (depends on which type of network you order) | ||
| GSM Frequency | 850/900/1800/1900 MHz | ||
| WCDMA Frequency | 850/1900 MHz, 850/2100 MHz, 900/2100 MHz | ||
| Antenna splitter (4 in 1) | – | ||
| Protocol | SIP, IAX2 | ||
| Transport | UDP, TCP, TLS, SRTP | ||
| Voice Codec | G.711 (alaw/ulaw), G.722, G.726, G.729A, GSM, ADPCM, Speex | ||
| Echo Cancellation | ITU-T G.168 LEC | ||
| DTMF Mode | RFC2833, SIP INFO, In-band | ||
| Console Port | – | ||
| Calling Type | Termination (VoIP to GSM/WCDMA), Origination (GSM/WCDMA to VoIP) | ||
| LAN | 1 10/100Mbps | ||
| Network Protocol | FTP, TFTP, HTTP, SSH | ||
| NAT Traversal | Static NAT, STUN | ||
| Network | DHCP, DDNS, Firewall, OpenVPN, Static IP, QoS, Static Route, VLAN | ||
| Dimensions (L × W × H) (mm) | 213 x 160 x 44 | ||
| Power Supply | AC 100-240V | ||
| Operation Range | 0°C to 40°C, 32°F to 104°F | ||
| Storage Range | -20°C to 65°C, -4°F to 149°F | ||
| Humidity | 10-90% non-condensing | ||
| Features | |||
| 1 Stage/2 Stage Dial | Balance Alarm | ||
| Call Back | Call Detail Record (CDR) | ||
| Call Duration Limitation | Call Progress Tone Generation | ||
| Call Status Display | Call Transfer | ||
| Call Waiting | Caller ID/CLIR | ||
| Carrier Selection: Auto/Manual | Configure backup/restore | ||
| Firmware upgrade by HTTP/TFTP | Gain Adjustment | ||
| GSM/CDMA/UMTS Ports Group Manage | Hotline | ||
| Incoming /Outgoing Routing rules | IP Blacklist | ||
| Network Attack Alert | NTP | ||
| Open API for SMS and USSD | Packet Capture | ||
| PIN Modify | Real Open API Protocol (Based on Asterisk) | ||
| Send Bulk SMS | Session Timer | ||
| SIP Peer Mode: Support | SIP Response Code Switch | ||
| SIP server for IP phones: Support SMS Center | SIP Trunk: Support | ||
| System Logs | SMS Sending and Receiving | ||
| VoIP Trunk Group | USD | ||
| White List and Black List | Web-based configuration | ||
