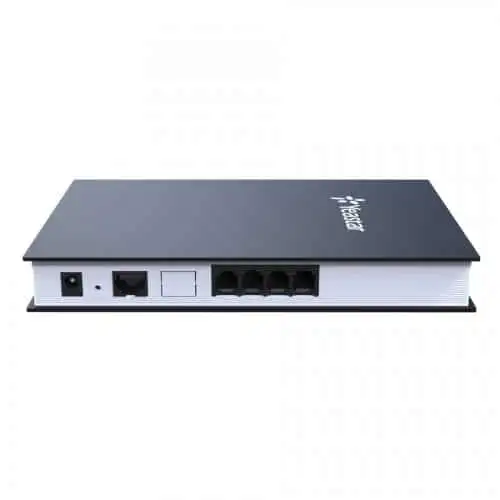

Yeastar TA 410 NEOGATE VoIP PBX Module
SKU:18,500৳
Product Code: OTC2629
- NeoGate TA410 is a stand-alone FXO VoIP gateway with carrier-grade features and reliability.
- 4 RJ11 FXO ports
- Fully compliant with SIP and IAX2
- Flexible calling rules
- Superb voice compression with industry-standard codecs
- Line echo cancellation for 8, 16, 32, 64 or 128 ms echo delays
- Tested and certified with Elastix, BroadSoft, and others
- Featuring a book-like design, NeoGate TA410 is elegant in appearance and flexible in installation. It is a
- desktop device and also wall mountable. Place it on the table, it not only provides a convenient connection to
- analog phones but also decorates your office pleasantly. Mount it on the wall, it saves you space and gives you
- more flexibility.
- NeoGate TA410 has an easy-to-use Web interface which allows super easy and straightforward configuration.
- LED indicators present system and port status visually
- User-friendly Web GUI and intuitive operations
- Comprehensive call log, system logs, hardware logs, and debug logs
- With a fanless design and a compact and small form factor, NeoGate TA410 is very quiet when operating. And
- low power consumption makes NeoGate TA410 a very green and cost-effective product, perfectly suitable for any type of environment.
Yeastar TA 410 NEOGATE VoIP PBX Module Specs:
| Ports | 4 FXO Ports | |
| Telephony Interfaces | RJ11 | |
| Network Interfaces | 1 10/100BASE-T Ethernet | |
| Protocol | SIP (RFC3261), IAX2 | |
| Transport | UDP, TCP, TLS, SRTP | |
| Codec | G.711 (alaw/ulaw), G.722, G.723, G.726, G.729A, GSM, ADPCM | |
| Voice Capability | ITU-T G.168 LEC Echo Cancellation, Dynamic Jitter Buffer, VAD, CNG, PLC | |
| DTMF Mode | RFC2833, SIP Info, In-band | |
| Fax | T.30 | |
| QoS | DiffServ, ToS, 802.1 P/Q VLAN tagging | |
| Network | DHCP, DDNS, OpenVPN, PPPoE, Static Route, VLAN | |
| Network Protocol | FTP, TFTP, HTTP, HTTPS, SSH | |
| Management Protocol | TR-069* | |
| Signaling | FXO Loop Start, FXO Kewl Start | |
| Caller ID | BELL202, ETSI (V23), NTT (V23-Japan), and DTMF-based CID | |
| Disconnect Methods | Busy Tone, Polarity Reversal | |
| FXO Connectivity | Programmable AC Impedance, Hangup Detection, Answer Detection, Caller-ID Detection | |
| Power | 12V, 1A | |
| Dimensions (L × W × H) (mm) | 200 × 137 × 25 | |
| Humidity | 10-90% non-condensing | |
| Storage Range | -20°C to 65°C, -4°F to 149°F | |
| Operation Range | 0°C to 40°C, 32°F to 104°F | |
| Mounting | Desktop, Wall-mount | |
| Compatibility | Interoperable with 3CX, Asterisk, Lync Server, FreePBX and certified with Elastix and BroadSoft |
