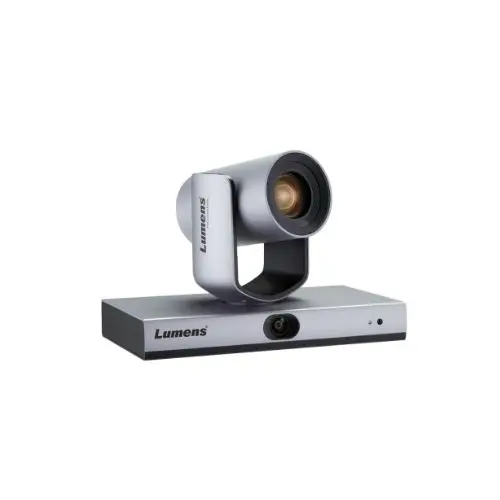

Lumens VC-TR1 Full HD Auto Tracking Camera
SKU:450,000৳
Product Code: OTC2662
• Auto tracking and smart switching
• Full HD 1080p 60fps with 20x optical zoom
• HDMI, 3G-SDI, IP, and USB video outputs
• Supports PoE+ (Power over Ethernet)
• Supports RTSP/RTMP/RTMPS and HEVC/H.264/MJPEG video compression
• Compatible with Barco ClickShare Conference
• 3 Year Warranty
Lumens VC-TR1 Full HD Auto Tracking Camera Specs:
Sensor
PTZ Camera:
1/2.8” 2.13MP CMOS
Panoramic Camera:
1/2.5” 8.57MP CMOS
Video Format
Resolution: 1080p / 720p
Frame Rate: 60 / 50 / 30 / 25
Video Output (HD) Interface
HDMI / SDI / USB2.0 / Ethernet
Optical Zoom
20x
Digital Zoom
12x
Viewing Angle
PTZ Camera: 71°
Panoramic Camera: 112°
Panning Angle
+90 ~ -90°
Panning Speed
100°/sec
Tilting Angle
+90 ~ -30°
Tilting Speed
80°/sec
Auto-Tracking
Yes
Auto-Switching
Yes
Aperture
F1.6 ~ F3.5
Focal Length
4.9mm ~ 94mm
Shutter Speed
1/60 ~ 1/10,000
Minimum Object Distance
500mm
Video S/N Ratio
> 40dB
Minimum Illumination
1.0Lux @ (F1.6, AGC ON)
Focus System
Auto / Manual
Gain Control
Auto / Manual
White Balance
Auto / Manual
Exposure Control
Auto / Manual
WDR
Yes
2D NR
Yes
3D NR
Yes
Preset Positions
256
Multiple Video Stream
1 x PTZ Camera Main Stream
1 x Panoramic Camera Main Stream
1 x PTZ Camera Sub Stream
Audio Compression Format
AAC
Control Interface
RS-232 / Ethernet
Control Protocol
VISCA / VISCA over IP
PoE
PoE+ (IEEE802.3at)
Video Stream
RTSP / RTMP / RTMPS
Video Compression
HEVC / H.264 / MJPEG
Audio Input
Line In / MIC In
(Phone Jack 3.5mm x1)
Audio Output
Ethernet / USB
IR Receiver
Yes
IR Remote Control
Yes
DC In
12V
Power Consumption
Max 21W
Weight
3.1lbs (1.4 kg)
Dimensions
9.6” x 5.7” x 6.5”
(245 ×145 ×165 mm)
